Business type
Product Name

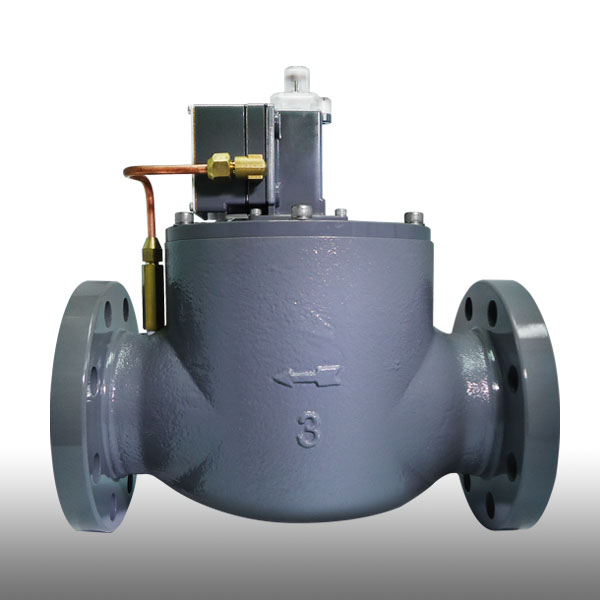

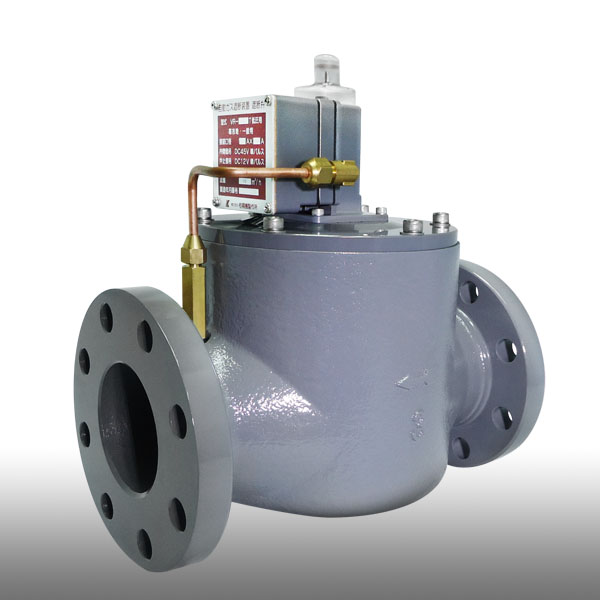

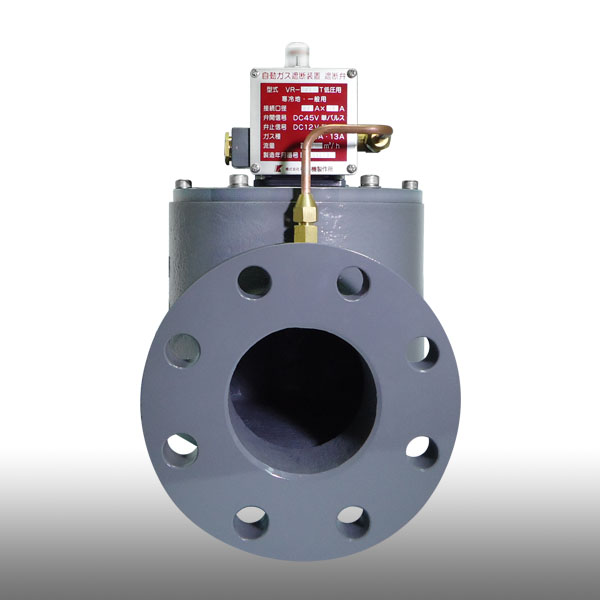

Shutoff valve (business type)
Model
VR-80T
Introduction



Features


 Emergency occurs immediately cut off gas to prevent secondary disasters & nbsp; & nbsp; & nbsp; & nbsp;
 The structure is intrinsically safe
 Using the operator to remotely control reset type
 An airtight checking, safe





Applicable space:











Type number
VR-80T
May take with control system filter
KM-673T
Even meet port Path
80A  JIS10k
Flow the amount of (& Delta; p = 5mmH2O)
60m³/h(AIR)

Outside surrounding feet inch

320mm

Heavy amount]
25kg
May Order by pressure force
1500mmH2O
Secret close test trial pressure force
External leak 500mmH2O, internal leak 50 and 420mmH2O
Valve body material quality
FCD-45
Fitness with warm of Fan Wai
-25℃~70℃
Resistance long of
More than 10,000
Automatic shutoff if the pressure drop of pressure
70~100mmH2O
Ann loaded bit set
Horizontal or vertical
