Gas ‧CO (dual)
Product Name

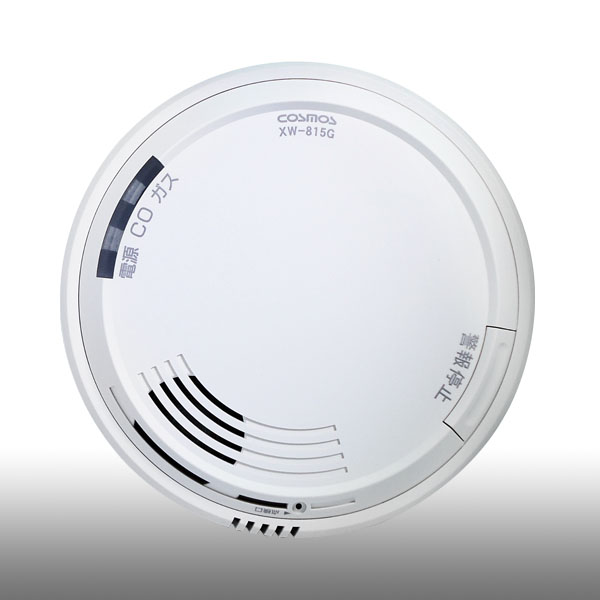

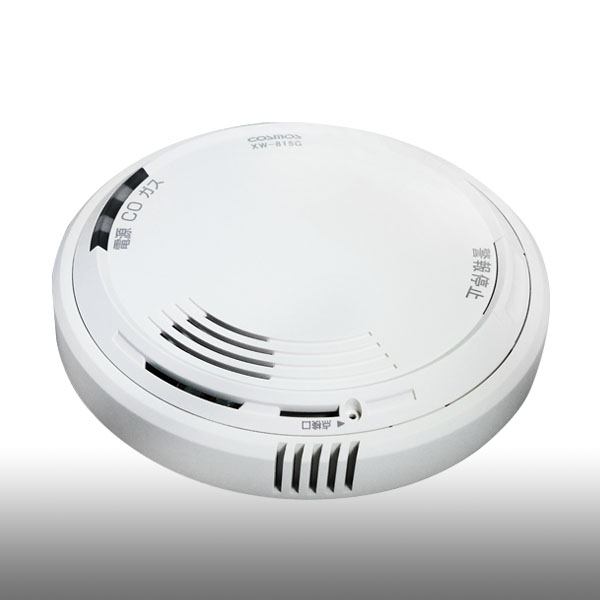

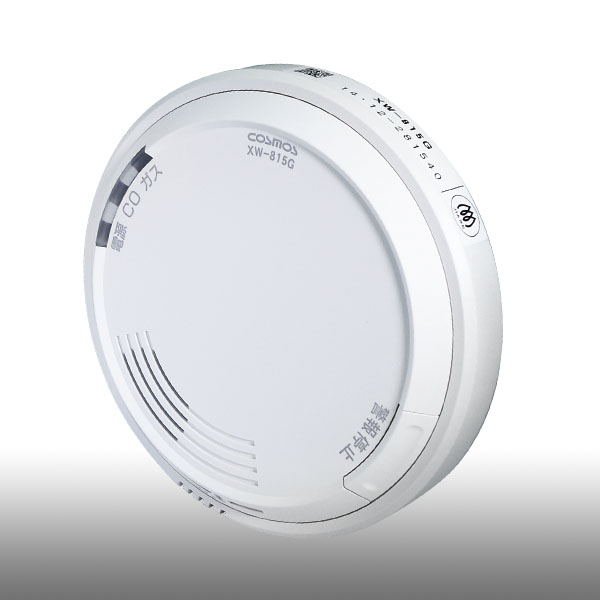

Gas .CO (dual-use) siren
Model
XW-815G
Introduction



Features


 Community, family and business premises can be used, small size and easy installation.
 To avoid detection of other gases cause malfunction, high stability.



 With alarm sound capabilities to indicate abnormal status indicator lights.





Applicable space:









Type number
XW-815G (ceiling)
Audience
City gas
CO
Note alarm condition
Will be issued when nearing the gas alarm gas concentration concentration attention notice
Detect more than 300ppm carbon monoxide emitted attention within five minutes notice
Note alarm mode
Red light flashing, no siren sound
Yellow light flashing, no siren sound
Gas alarm concentration
Explosive concentration limit of 1 generated alarm / 4,60 sec
550ppm more carbon monoxide is detected, an alarm is generated within 5 minutes
300ppm more carbon monoxide is detected, an alarm is generated within 10 minutes
Alert mode
Red lights, siren
Or flashing yellow lights, siren
Detecting mode
Hotline semiconductor type
Hotline semiconductor type
Return mode
Auto Return
Auto Return
Alarm volume
70dB (A) / m or more
85% RH or less
Temperature range
0℃~50℃
Electric Source
AC100V & plusmn; 10% 50 / 60Hz share
Power consumption
When monitoring: about 0.7W
When the alarm: about 1.2W
Foot inch

& Psi; 120 & times; D25.6mm (exclude prominences), weighing about 145 g

External Output
3-band stage gas voltage 2-wire (power OFF and machinery exception OV. When monitoring DC6V gas alarm DC12V‧CO alarm DC18V
Alarm stop
By the alarm stop button allows the alarm sound is temporarily stopped five minutes, five minutes later as the situation has not been removed, the alarm continues to sound beeper.
Alarm sounds
Japanese voice warning + alarm and single alarm sound mixing two kinds
Outside View
Round
Installation
Attached to the ceiling

Ming Cause

A functional

After the alarm sound stops when the button is pressed check will be issued "an alarm" sound and alarm lights up, the reasons for moving Ming confirmed. (警報停止後10日之內)

Additional Functions
Boot automatically check suspended alarm, display an alert content, the machine automatically displays the exception, reminding the expiration date
