Building type
Product Name
Operator (building type)
Model

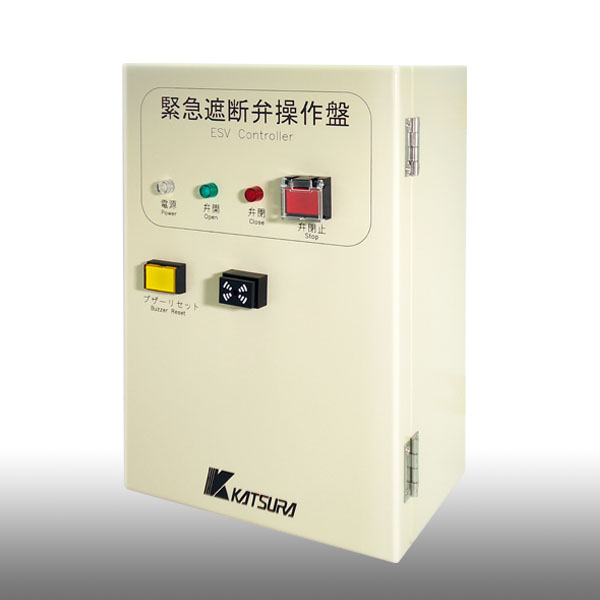

TG-5
Introduction



Features

 Acceptable leak alarm signal, and sends a signal to the shutoff valve.
 To accept earthquake alarm control panel signals, and send the letter & nbsp; number to shutoff valve.

 Receiving an emergency signal (manual pressure deduction), and issued letters & nbsp; number to shutoff valve.

 Accepts a signal and an alarm sounds, and other functions.




Applicable space:









Model
TG-5
Node configuration
Steel plate, inside wall type
External type Size

180 & times; 270 & times; 120mm (width X height X depth)

Tu loaded color
/ Munsell Color Ivory 2.5Y8 / 2

Heavy amount

3.9kg

Power supply voltage
AC100V±10V、50 / 60Hz
Consumer electrical power
15W or less
Cover off the power
DC13.5 & plusmn; 0.5V, 470 & mu; F capacitor discharge

Power light indicates

Power Lamp LED milky

Valve LED lights green

Valve LED lights red

Interrupted when the alarm buzzer alarm 70dB

External messaging function

Contact signal to the switch state shutoff valve is transmitted to the outside

(Valve closed when ON, AC200V, 3A)
External shutdown function
Contact signal to the switch state shutoff valve is transmitted to the outside
Temperature range
-10℃~50℃
Standby power source
Charging time: 72 time or more
Suitable shutoff valve
V-20~150 / VM-20~100
