Centralized meter reading
Product Name

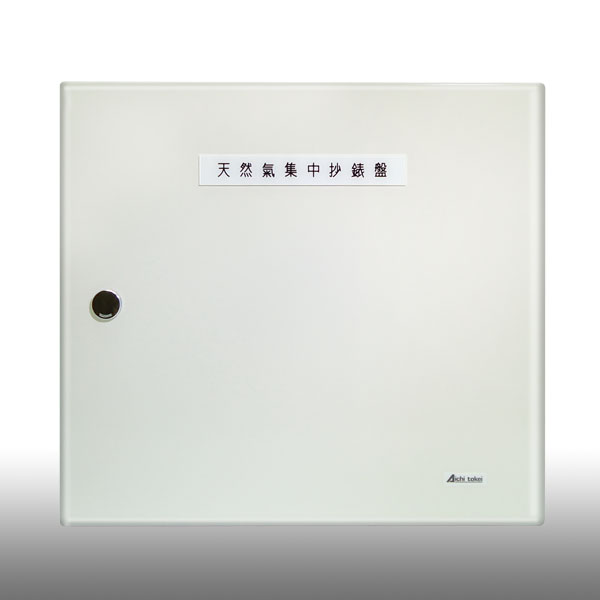

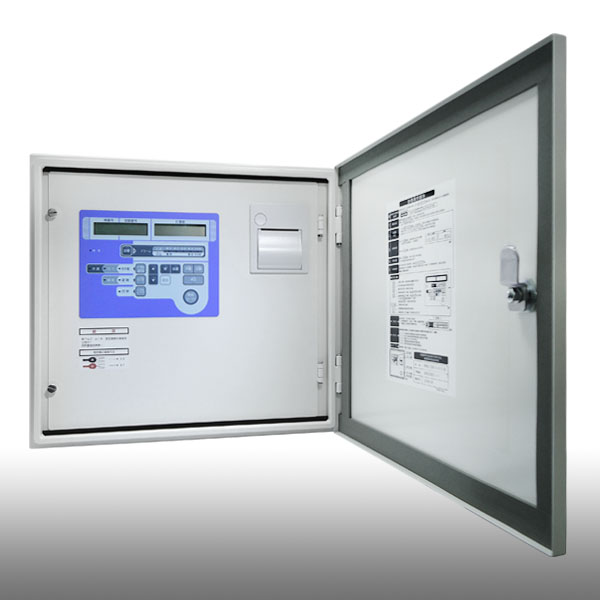

Centralized meter reading devices
Model
AR-VII
Introduction



Features

 Degree to remotely control and automatic meter reading functions to facilitate good and safe.
 With a digital display, simple operation record printable.

 Microcomputer gas meter can diagnose abnormal state, simultaneous display abnormal information.

 Applicable to gas, water, electrical meter.




Applicable space:







Model
AR-VII
Items project
Bus type
Sent back to the line number
Maximum 5 loops (1 loop equivalent Duanmo transmitter may continue 16)
Continue Instrumentation total
Up to 800
Liquid crystal display

[[Two houses numbered by 1 digit (12) +8 digits (7)

Needle value is expressed in 10-digit (7 segment + decimal point) + needle Unit. Instantaneous flow units. Mark

Open Off

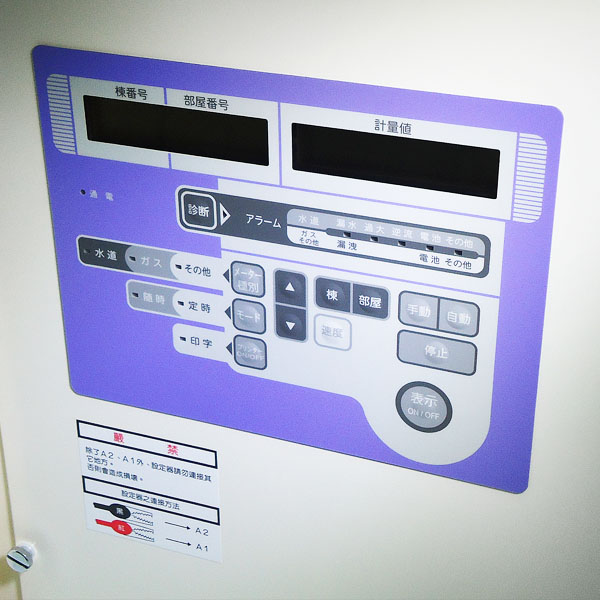

Membrane keypad (12 key)
LED
Red 11. Green 1
Communication
FSK 1200BPS
Communication line
4-cell isolation wire & Oslash; 1.2 (recommended FCPEV line)
Communication distance
Maximum 1km (conditional)
Communication
Baseband transmission maximum 300BPS
Communication line
2-core isolation wire & Oslash; 0.9 (recommended AE alarm wire)
Communication distance
Maximum 200m
Electric Source
AC100V ±10V  50/60Hz
Power consumption (standby)

Maximum below 50W

(When needle) Power Consumption

Maximum 80W or less

Memory backup battery

Lithium battery accumulated within 5000 hours

Temperature range
-10℃~+40℃
Humidity range
90% RH or less (but not the case condensation)
India brush
Mizakae electrical printing mechanism Character Type MTP-58E
Key disc
TAKIGEN manufacture of A-147
Yan color
Japan 22-90B beige paint technology
Installation
Indoor wall-mounted type (not directly caught in the rain under the eaves to the wall can be)
