Centralized monitoring
Product Name

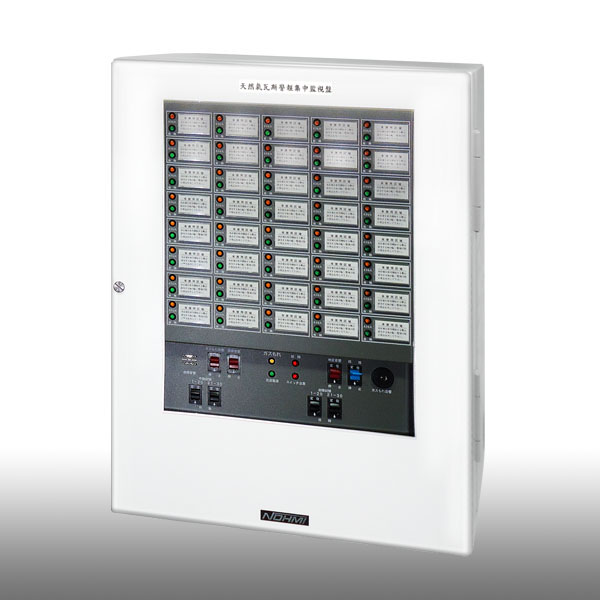

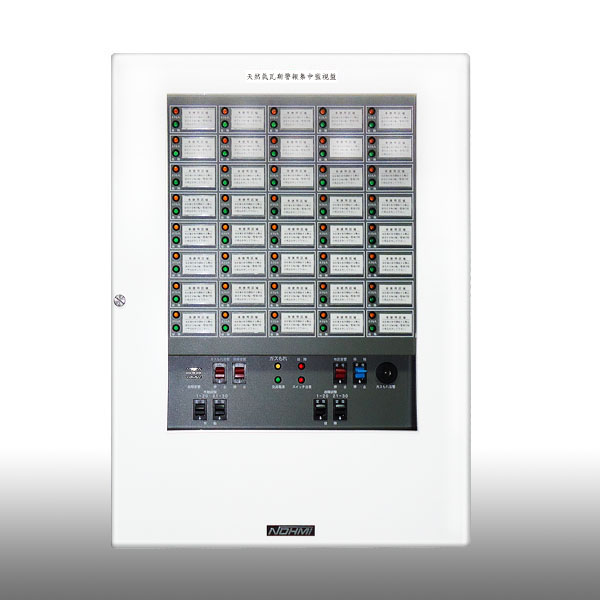

Centralized monitoring panel
Model
AAP211-A-40L
Introduction



Features

 Acceptable leak alarm signals, and signals to the operator.
 Containing fault and test switch, test function on their own.

 Accepts a signal and an alarm sounds, and other functions.

 And gas alarm connection is working properly, an exception to the LED display.




Applicable space:







Model
AAP211 trusted machine
Press line number
40L
Monitor power
Approximately 1.5W
Alert Electric Power
23W
Link voltage
DC24V    ‧   DC12V
The force signal voltage
Monitoring 6V alarm 12V malfunction 0V
Alert mode
Auto Return, received signal action
Standard delay time
Approximately 30 seconds (when gas leakage alarm)
Number of connected machines
Gas leak alarm or repeater A / return line
Repeater species
ARP011 type (exposed type), ARP051 type (embedded type)
Audio device
Gas leak sound: electronic sound, acoustic fault: electromagnetic noise
Regional sound capacity
Maximum amount of current 0.4A
External shift report output
A no-voltage contacts 2:00 Capacity: DC30A, 1A
Line impedance
50 ohms
Heavy amount
Approximately 14.3kg
