Full-flow type
Product Name

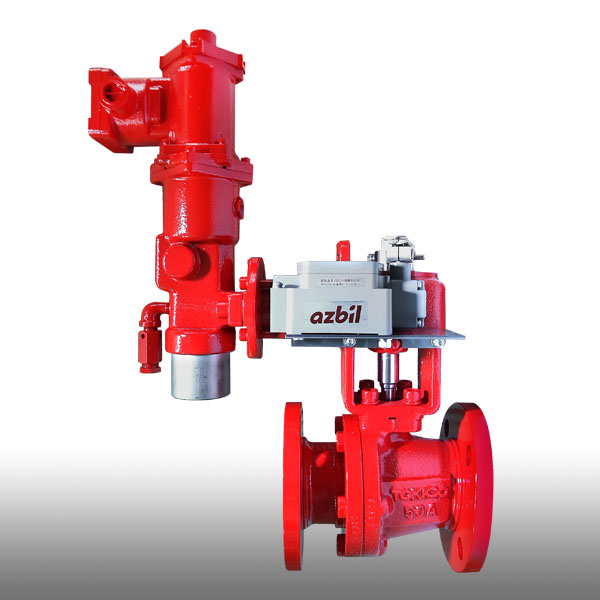

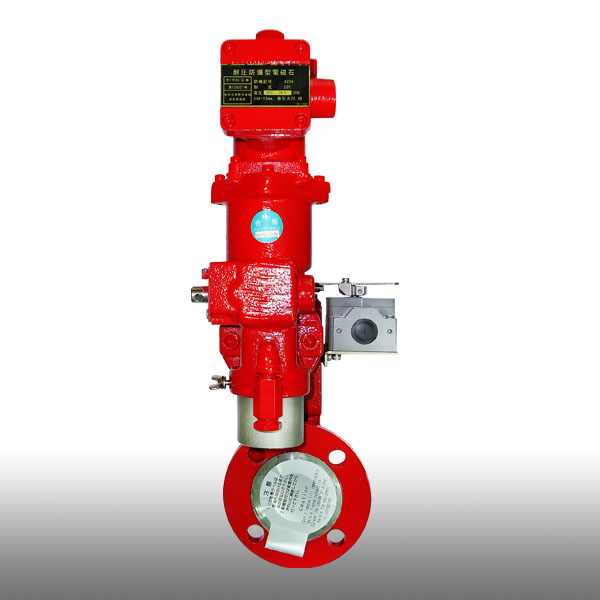

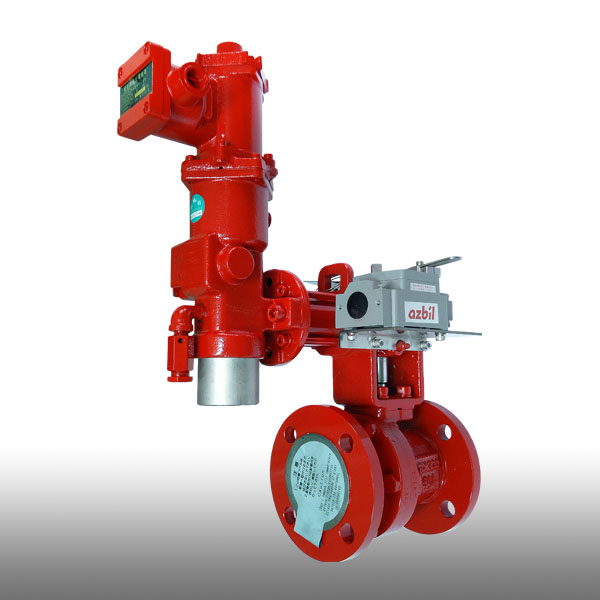

Shutoff valve (full Flow Rate Type)
Model
MBA0505BNR
Introduction



Features

 With carbon dioxide gas cylinders, actuators ability to play accurately & nbsp; & nbsp; & nbsp; & nbsp;
 Without other ancillary features

 Manually operable switch

 Horizontal or vertical Jieke installation

 To follow existing equipment to do the modification





Applicable space:







Model
MBA0505BNR
Applicable gas
Metropolis Gas, natural gas, LP Gas, petroleum class et
Fluid temperature
-5℃~80℃
The fluid pressure
Max.0.99MPa

Connection diameter

50A

Flange Specification
JIS 10K FF or RF ANSI‧JPI 150 RF
Body material
SCPH2 or SCS13
Equipped with Material
Tube: SCS13, gasket: PTFE Teflon
Gear
-Cylinder
Drive power
24V DC & plusmn; 10% or 100V AC & plusmn; 10% 50 / 60Hz
Power consumption
24V DC & hellip; 30W, or 100V AC & hellip; 35VA
Signal
Click circuit signal (power-on time from 0.5 to 3.0 seconds)
Structure made
Flameproof (d2G4)
Operation Return
Manual reset
Ambient temperature
-20℃~40℃
Install pipe
Horizontal or vertical pipes
Paint colors
Red: Color 5R 3.5 / 13
